Filling, capping and labelling line for tanks - RTE1U

Filling, capping and labelling line for tanks - RTE1U

Custom Solution

Location:Milan, Italy

orCall +39 0362 594502

Description

Complete packaging system for 25 kg tanks.

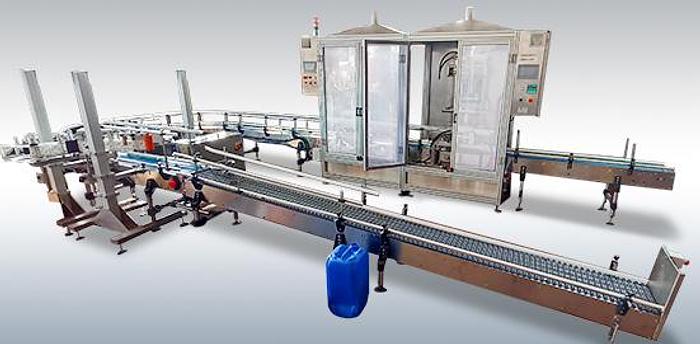

Filling, capping and labelling line composed of:

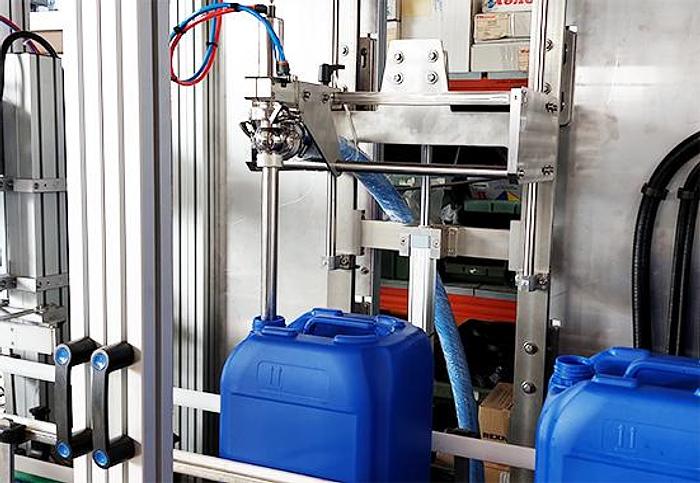

  • 1 dosing station with diving nozzle and connection with nozzle also usable for the washing cycle;
  • 1 in-line weighing group for weight control;
  • Feeder of caps with Pick and Place device for the automatic positioning of the cap;
  • 1 capping station with single head capper suitable for the closure of screw caps;

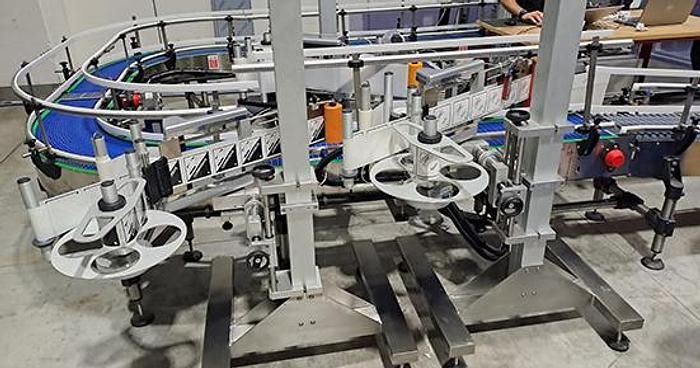

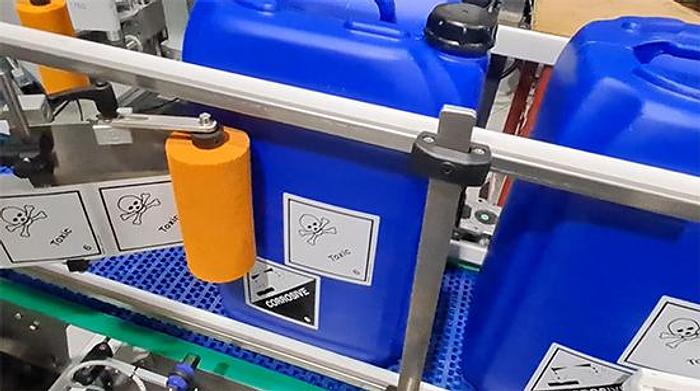

  • 1 labeling station consisting of 2 labeling heads Classic New3 and 1 head Print & Apply, which allows the compilation of labels with variable data;
  • Conveyor belts of customized dimensions and configured according to the lay-out of the available space.


The dosing and capping stations are equipped with plexiglass booth, for suction of any vapours generated during dosing.

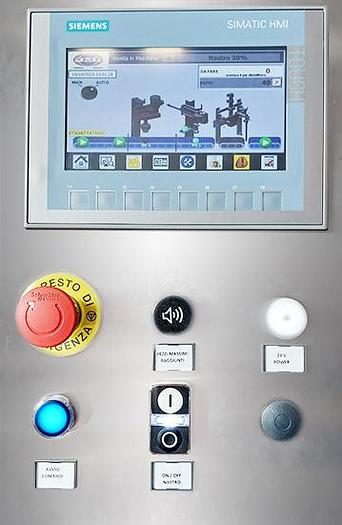

The entire system is controlled by a touch-screen control panel on the machine, with the possibility of adjusting the dosage.


Production: 100 pcs/h.

Specifications

Ideal solution for tanksinks - pigments - paints - solvent - paint remover - oils - disinfectant - fertilizers.
